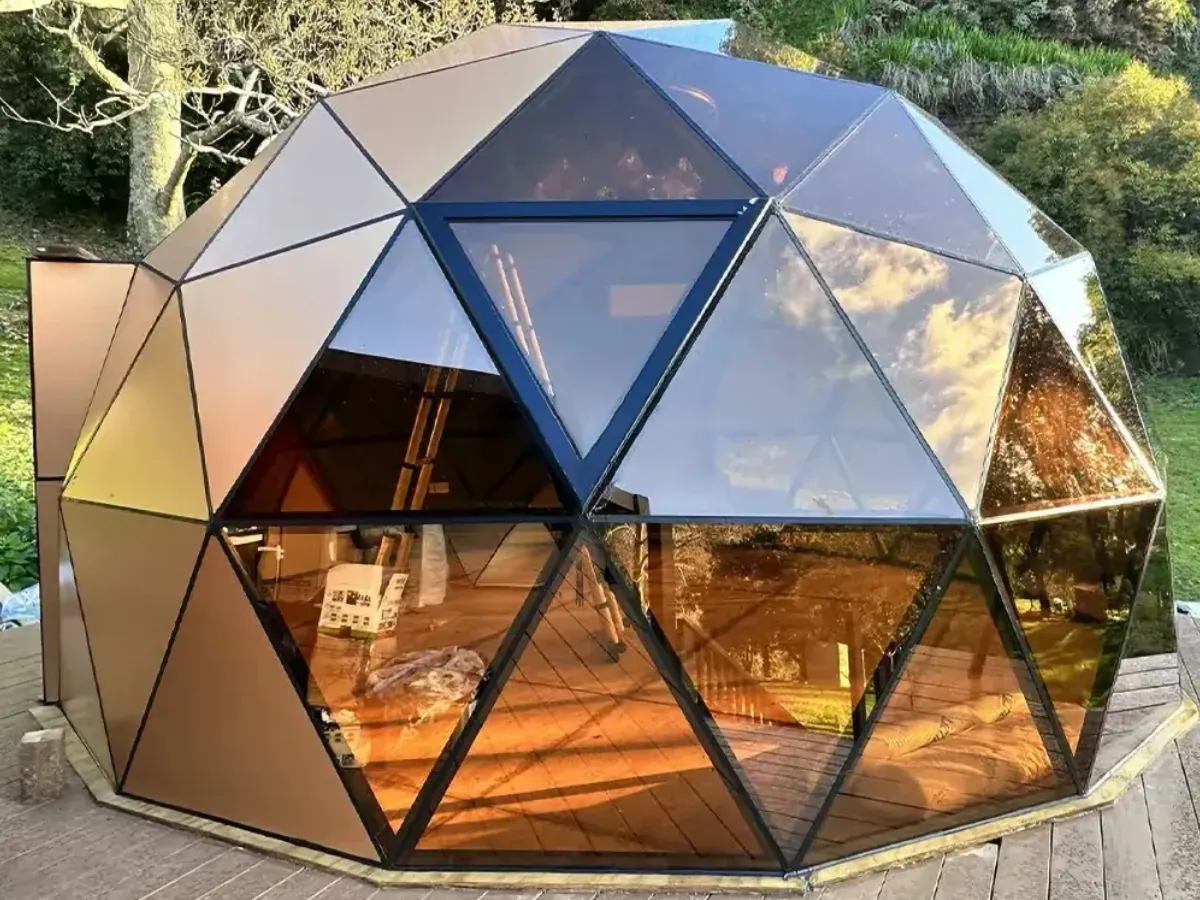

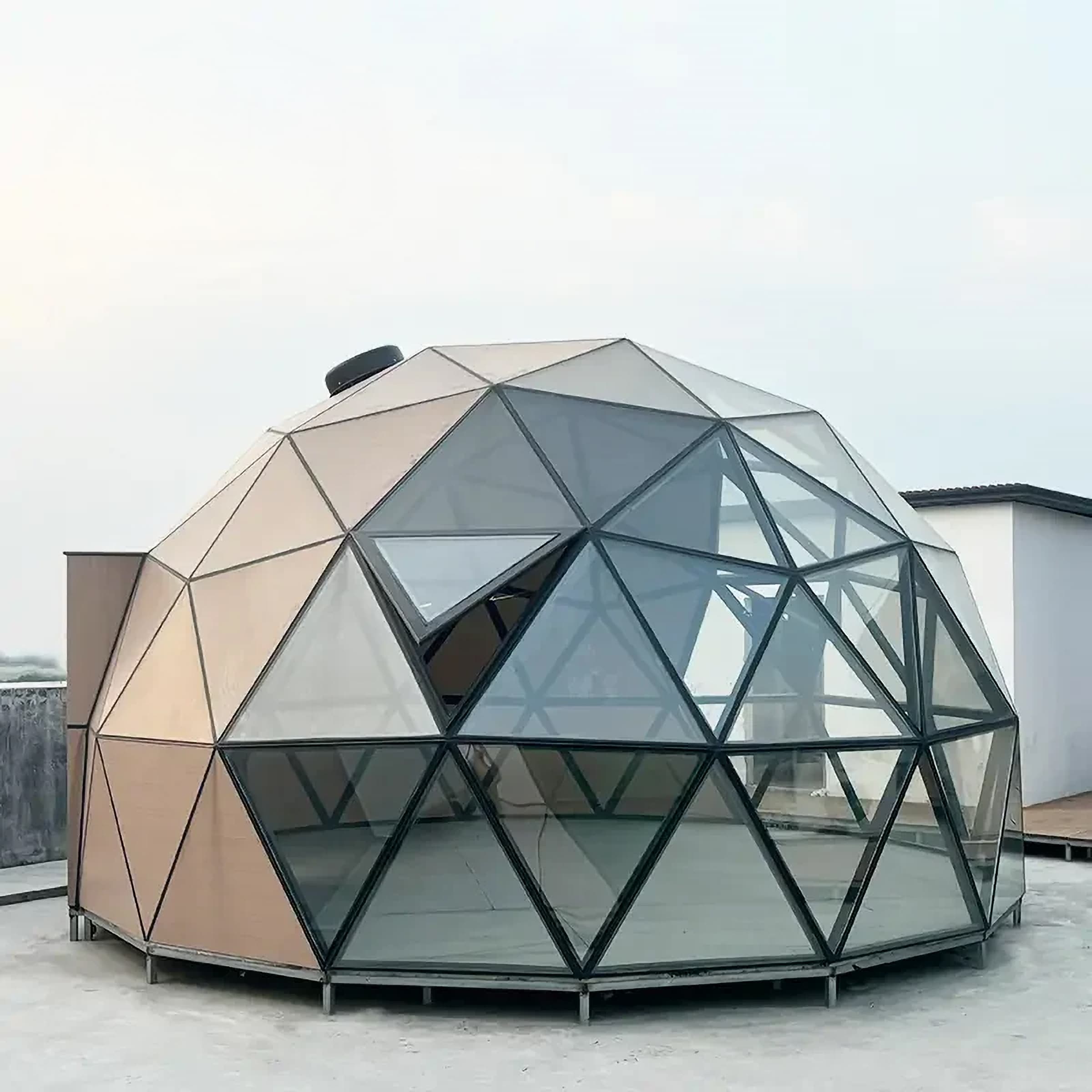

Tetra Hybrid Glass Dome Kit
5 sizes · 16–30 ft · Made to order
The Tetra Hybrid Glass Dome Kit is a glamping dome kit that puts real double-pane glass where you look out and wraps the rest of the dome in an insulated, cozy cover.
- Diameter
- 16.4–29.5 ft
- Height
- 10.5–19.7 ft
- Floor area
- 215–689 ft²
- Capacity
- 4–10 people
- Made to order. Currently ships in 10–12 weeks.Lead times vary with order volume and season.
- Free shipping to the lower 48 states
Prefer the phone? (866) 767-3117
Why Choose Us?
Decades of Expertise
01Our team has spent years refining geodesic dome engineering.
Next-Generation Innovation
02We push architectural boundaries with advanced, sustainable materials.
Eco-Friendly & Energy-Efficient
03Designed to minimize environmental impact while maximizing efficiency.
Customer-Centric Approach
04Every dome we create is built with you in mind—your needs, your vision, your space.

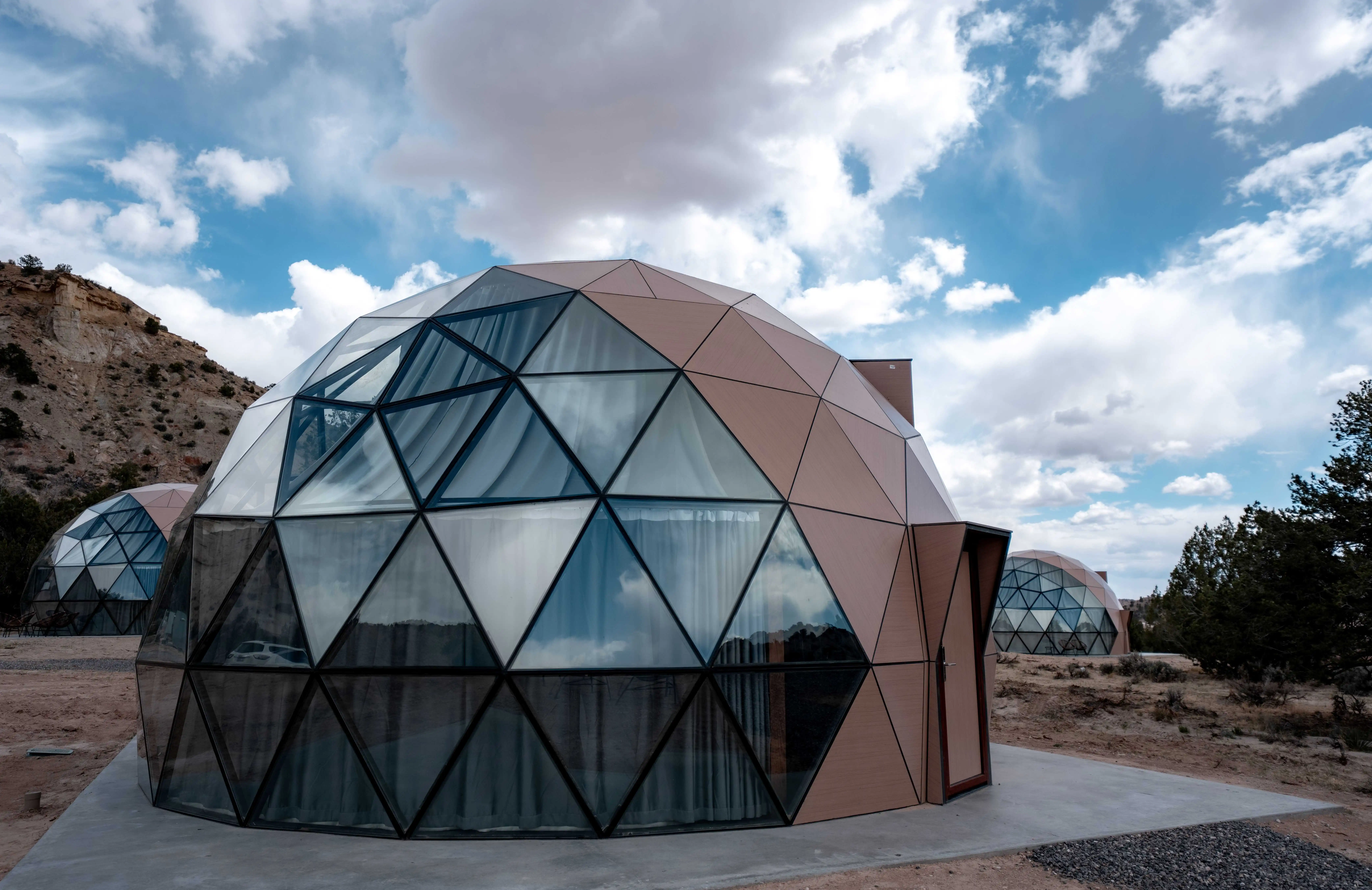

The Tetra Hybrid
Real Glass Views, Built for a Smarter Budget
The same real-glass experience, with an insulated, cozy cover. A galvanized steel frame holds the covered sections, 6061 aluminum holds the glass, and the basics come standard: insulation, a curtain system, a solar fan, and two windows with mosquito screens. More domes for your site, with your quote showing the difference at your size.
Real Glass Views
The viewing area is double-pane glass, so you get a clear view of the landscape from inside.
The Right Metal in Each Place
6061 aluminum struts hold the glass, and heavy-duty galvanized steel frames the rest of the dome.
More Domes for Your Site
A galvanized steel frame and an insulated cover help your budget stretch across more domes. Your quote shows the difference at your size.
Insulation Included
6 mm foil insulation with an Oxford cloth interior comes standard and gives the room a warm, cozy feel.
Ventilation Included
Every kit comes with a solar exhaust fan and two manual windows with mosquito screens to keep air moving.
Room for More Light
Optional upgrades: extra glass for a larger viewing area, or a manual or electric center skylight.
Features & benefits
What Every Feature Means for Your Guests
Each part of the Tetra Hybrid Glass Dome Kit is there for a reason you and your guests will notice.
Real glass views
Guests look out through real double-pane tempered glass, so the landscape stays clear from inside.
The right metal in each place
6061 aluminum holds the glass and heavy-duty galvanized steel frames the rest, so the dome is rigid and built for the outdoors.
Insulated for four-season comfort
6 mm foil insulation with an Oxford cloth interior lines the covered sections of a fully insulated, fully sealed, weatherproof dome.
Fresh air on demand
A solar exhaust fan and two manual windows with mosquito screens keep air moving.
Privacy and darkness when you want them
A curtain system comes with every dome, and the cover’s black middle layer blocks all light.
Engineered for your site
We engineer every dome for the wind and snow loads where it stands, and stamped engineering documents are available as an option in all 50 states.
The film · 1:16
Geodesic Dome Kits for Dome Houses, Glamping & Resorts
Choose a permanent geodesic dome kit for a dome house, guest retreat, glamping property or hospitality project. Available configurations include panoramic glass dome kits and hybrid dome kits that pair a double-pane glass viewing area with an insulated cover, built for a smarter budget.
- Double-Pane Glass Viewing Area
- Insulated for Four-Season Comfort
- Curtains, Solar Fan & Two Windows Included
- Aluminum & Galvanized Steel Frame
- Engineered for Your Wind & Snow
- Optional Skylight or Larger Glass Area
- Five Sizes, 16–30 ft
Why a Hybrid Frame?
The glass viewing area sits on pre-welded 6061 aluminum struts that bolt together on site, a rigid frame made for holding glass. Everywhere the dome is covered instead of glazed, heavy-duty galvanized steel does the work. Each metal goes where it makes the most sense.
- 6061 aluminum at the glass, where pre-welded struts hold the double-pane panels
- Galvanized steel everywhere else, zinc-coated to resist rust
- A triangulated frame that spreads loads evenly across the whole dome
Double-Pane Glass and an Insulated Cover
- Double-pane glass where you look out.The viewing area uses 3/4" double-pane tempered glass, clear, tinted or mirrored at no extra charge, so you get a clear view of the landscape and better insulation than a single pane.
- An insulated cover over the rest.A 28-mil heavy-duty, UV-treated PVC cover (0.7 mm) replaces the rigid panels on our earlier Hybrid. A black middle layer blocks all light. The cover comes in gray, white, tan or green, with other and custom colors on request, and the inside matches the outside.
- Insulated for four-season comfort.6 mm foil insulation with an Oxford cloth interior lines the covered sections, so the room stays cozy through all four seasons.
Built for Strength
The Tetra Hybrid’s aluminum and galvanized steel frame is built to stand up to strong wind. We engineer each dome for the wind and snow loads where you build, and confirm anchoring and installation details for your site and size.
- Galvanized steel and 6061 aluminum, both chosen to resist corrosion outdoors
- Strong wind resistance from the triangulated geodesic shape
- Weatherproof and sealed.The dome is fully weatherproof and a fully sealed environment.
- Stamped engineering available.Stamped engineering documents are available as an option in all 50 states, the same as for the Tetra Glass.
Ways to use it
Where the Tetra Hybrid Fits
The Tetra Hybrid suits projects that want real glass views and an insulated, cozy interior, whether it’s one dome or a whole site of them. Your climate, foundation, utilities, and local rules shape the right setup, and we’ll work through them with you.
- 01
Glamping Units
Guest-ready stays with a glass view and an insulated, cozy interior.
- 02
Guest Retreats & Rentals
Glass on the view side and a covered body for privacy.
- 03
Dome Homes
Full-time or vacation homes, planned around your climate and local codes.
- 04
Backyard Studios
An office, studio, or reading room with natural light, steps from the house.
- 05
Off-Grid Getaways
Solar compatible, with a solar fan already in the kit.
Need a larger dome? Larger sizes are available on request.
What Dome House customers say
“The team at The Dome House helped me customize a 20′ all-glass dome with a curtain system and vent windows, and it’s been a total game changer. The guests rave about the view of the northern lights.”
James W., Whitefish, MT
For a Backcountry Rental
Bought: Tetra Glass, all glass
How it works
Made to order. Currently ships in 10–12 weeks.
Lead times vary with order volume and season.
01
Consultation
Talk through your project with our team, then confirm your size, cover color, glass finish, and upgrades.
Book a call →02
Production
Reserve production with a deposit. We manufacture and package your dome to order, and the production schedule is confirmed with your quote.
03
Delivery
Free shipping to the lower 48 states. You receive finalized drawings, your shipping ETA, and delivery details. Alaska, Hawaii, and international delivery are quoted separately.
04
Installation
Your kit includes an installation manual and assembly blueprints for every job, plus support from our team.
In the kit
What’s Included in Every Dome Kit
Every dome kit arrives complete. No nickel-and-diming for basics.
Structural System
- Pre-welded 6061 aluminum struts at the glass viewing area, bolted together on site
- Heavy-duty galvanized steel frame everywhere else
Glazing & Openings
- 3/4" double-pane tempered glass, clear, tinted or mirrored at no extra charge
- Two manual windows with mosquito screens
- Aluminum entrance frame with a glass entry door and keypad lock
- Cable grommet panels
Comfort & Climate Control
- Solar exhaust fan, solar and HVAC compatible
- A curtain system for privacy on demand
Cover & Insulation
- 28-mil heavy-duty UV-treated PVC cover (0.7 mm) with a black middle layer that blocks all light
- Gray, white, tan or green, with other and custom colors on request; the inside matches the outside
- 6 mm foil insulation with an Oxford cloth interior
Assembly & Support
- Complete set of screws and nuts, anchoring feet and deck screws, an assembly toolkit and a cleaning kit
- Installation manual and assembly blueprints for every job, plus support from our team
- Warranty card and user guide
Free Delivery
- Free shipping to the lower 48 states
- Palleted, insured, and shipped in a covered box truck
Installation, land, foundation, and interior finishes are not included and depend on your project.
Your build
Standard in Every Dome, Plus the Upgrades You Choose
Every dome comes with the standard list. Each upgrade is chosen on its own, with no packages.
Standard in every dome
- Curtain system
- Two manual windows with mosquito screens
- 6 mm foil insulation with an Oxford cloth interior
- Solar exhaust fan
- Glass entry door with a keypad lock
- 28-mil heavy-duty PVC cover (0.7 mm) with a blackout middle layer, in gray, white, tan or green
- 3/4" double-pane tempered glass, clear, tinted or mirrored at no extra charge
Optional upgrades
Center skylight
Manual or electric.
Electric windows
In place of the two manual ones.
35-mil PVDF cover (0.9 mm)
In place of the 28-mil PVC cover.
Extra glass
For a larger viewing area.
Stamped engineering documents
Optional, for your site, in all 50 states.
A stove port is free on request.
Cover colors
Gray, white, tan or green, with other and custom colors on request. The inside matches the outside.
Tan
Gray
White
Specifications
Technical Details & Specifications
Every size
- 16 ft16.4 ft · 10.5 ft · 215 ft² · 4–8 people16.4 ft10.5 ft215 ft²4–8 people
- 20 ft19.7 ft · 11.5 ft · 312 ft² · 4–8 people19.7 ft11.5 ft312 ft²4–8 people
- 23 ft23.0 ft · 13.8 ft · 420 ft² · 4–8 people23.0 ft13.8 ft420 ft²4–8 people
- 26 ft26.25 ft · 14.5 ft · 541 ft² · 4–8 people26.25 ft14.5 ft541 ft²4–8 people
- 30 ft29.5 ft · 19.7 ft · 689 ft² · 4–10 people29.5 ft19.7 ft689 ft²4–10 people
Shared by every size
- Frame
- Pre-welded 6061 aluminum at the glass; galvanized steel elsewhere
- Glass
- 3/4" double-pane tempered glass; clear, tinted or mirrored included
- Exterior Cover
- 28-mil heavy-duty PVC (0.7 mm) with a blackout middle layer; 35-mil PVDF (0.9 mm) upgrade
- Cover Colors
- Gray, white, tan or green; others on request
- Thermal Insulation
- 6 mm foil insulation with an Oxford cloth interior, standard
- Ventilation
- Solar exhaust fan and two manual windows with mosquito screens
- Curtains
- Curtain system included
- Skylight
- Optional, manual or electric center skylight
- Viewing Area
- Extra glass for a larger viewing area is optional
- Climate
- Four-season ready
- Materials
- Made with fire-retardant materials
- Wind
- Engineered for your site’s wind and snow loads
- Energy Supply
- Solar & HVAC Compatible
Logistics & shipping
Logistics & Shipping
- 01
Production Timeline
Made to order. Currently ships in 10–12 weeks. Lead times vary with order volume and season.
- 02
Free Shipping
Free shipping to the lower 48 states. Every kit ships palleted, shrink-wrapped, and insured in a covered box truck. Alaska, Hawaii, and international delivery are quoted separately.
- 03
Assembly Support
A step-by-step assembly guide is included, and installer recommendations are available. Stamped engineering documents for your site are available as an option.
- 04
Warranty & Support
Electronics are warranted for 2 years. Glass and weather sealing are rated for 30 years, and frames are rated for a lifetime. Shipping damage is replaced free of charge.
Ready to talk about your project?
- Made to order. Currently ships in 10–12 weeks. Lead times vary with order volume and season.
- Free shipping to the lower 48 states
- Stamped engineering available as an option in all 50 states
See other dome types

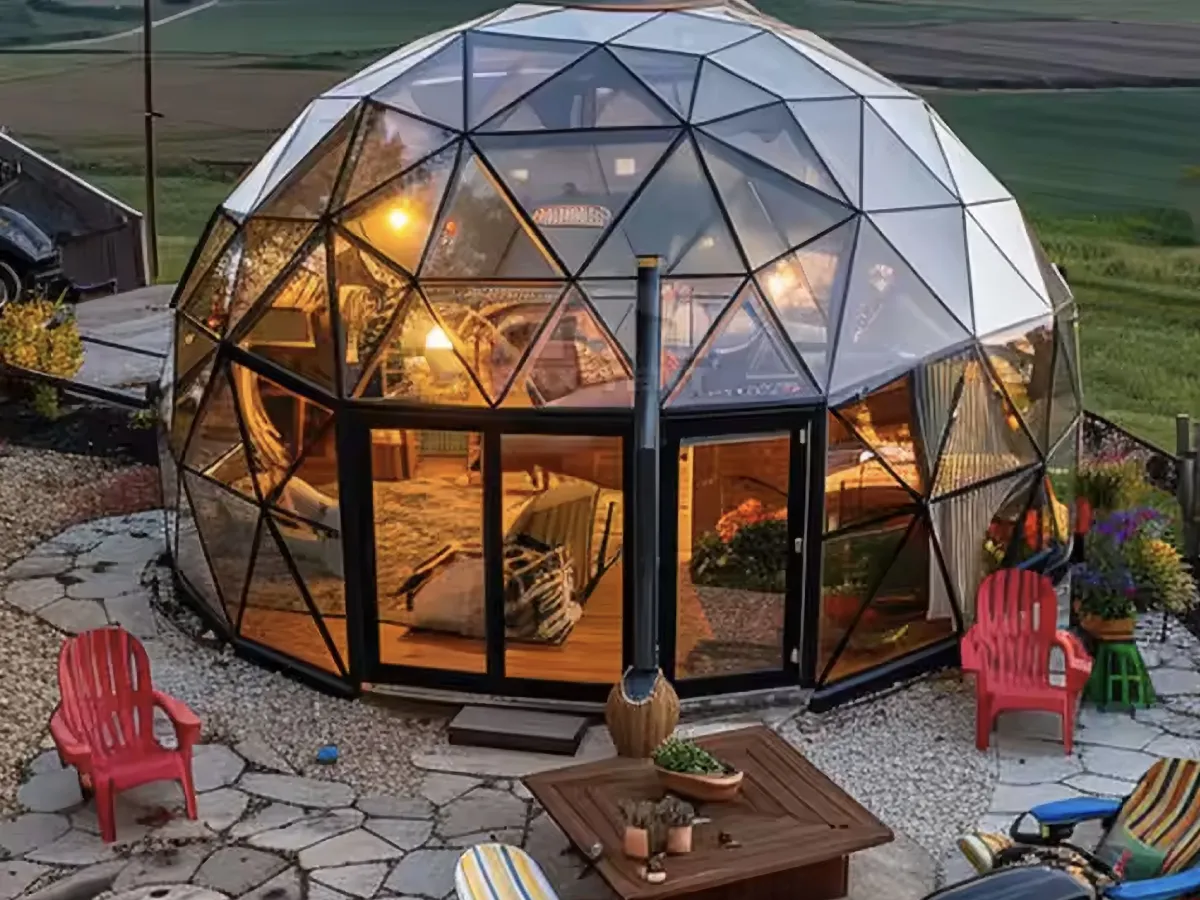

Tetra Glass Geodesic Dome Kit
Double-pane tempered glass, all glass or with insulated panels, on a pre-welded aluminum frame
Explore Glass Dome KitsQuestions, answered
FAQs
What makes the Tetra Hybrid a hybrid?
The Tetra Hybrid mixes materials, using each one where it does the best job. The glass viewing area is 3/4" double-pane tempered glass on pre-welded 6061 aluminum struts. The rest of the frame is heavy-duty galvanized steel, with an extra-thick, UV-treated PVC cover outside and a 6 mm foil insulation layer inside.
How is the Tetra Hybrid different from the Tetra Glass?
The Tetra Hybrid puts real double-pane glass in a viewing area and covers the rest of the dome with an insulated cover. The Tetra Glass is all glass, or glass with insulated panels, on an all-aluminum frame. Your quote shows the price difference at your size.
Is the viewing area real glass?
Yes. It’s 3/4" double-pane tempered glass set in a pre-welded 6061 aluminum frame, so the view is as clear as you’d expect from glass. Clear, tinted or mirrored glass is included at no extra charge, the same as on the Tetra Glass.
What covers the rest of the dome?
A 28-mil heavy-duty, UV-treated PVC cover (0.7 mm) covers every section outside the glass viewing area. A black middle layer blocks all light, and a 6 mm foil insulation layer lines the inside. The cover replaces the rigid insulated panels on our earlier Hybrid.
What colors does the cover come in?
The cover comes in gray, white, tan or green. Other and custom colors are available on request, and the inside matches the outside.
Is the Tetra Hybrid four-season ready?
Yes. The Tetra Hybrid is four-season ready, a fully insulated structure and a fully sealed, weatherproof environment.
Is insulation included?
Yes. 6 mm foil insulation with an Oxford cloth interior is included in every Tetra Hybrid, not sold as an upgrade. It lines the covered sections and gives the inside a soft, cozy look.
Are the solar fan, windows and curtains included?
Yes. Every Tetra Hybrid comes with a solar exhaust fan, two manual windows with mosquito screens, and a curtain system. If you also want heating or cooling, like a mini split, we can go over options with your quote.
What upgrades are available?
You can add a manual or electric center skylight, electric windows in place of the two manual ones, a 35-mil PVDF cover (0.9 mm), or extra glass for a larger viewing area. Each upgrade is chosen on its own, with no packages, and your quote shows what each one adds.
Can I add a skylight?
Yes. A manual or electric center skylight is an optional upgrade, and your quote will show the one you pick.
Can I make the glass area bigger?
Yes. Extra glass for a larger viewing area is available as an upgrade. We’ll help you pick a layout and show you how it changes your quote.
Can I use a wood stove in the Tetra Hybrid?
Yes. A stove port is free on request, the same as on the Tetra Glass. Follow the stove maker’s clearances and your local codes.
Is the Tetra Hybrid made with fire-retardant materials?
Yes. The Tetra Hybrid is made with fire-retardant materials.
How does it handle wind and snow?
Very well. The geodesic shape spreads loads across the whole frame, and the aluminum and galvanized steel structure is built for strong wind. We engineer each dome for the wind and snow loads where you’re building, so ask us about the specs for your location.
Do you provide stamped engineering for permits?
Yes. Stamped engineering documents are available as an option for the Tetra Hybrid in all 50 states, the same as for the Tetra Glass. They are not included in the kit.
What sizes does the Tetra Hybrid come in?
The Tetra Hybrid comes in five sizes: 16, 20, 23, 26, and 30 ft. You’ll find every dimension and floor area on our Dome Kit Sizes page, and larger sizes are available on request.
Can I use it for glamping, a guest retreat, or a home?
Yes. Glamping units, guest retreats, backyard studios, and dome homes are all good fits. The right setup depends on how you’ll use it, your climate, foundation, utilities, and local rules, and we’ll work through those with you while we put your quote together.
What kind of foundation does it need?
Most customers choose a pier foundation with a raised wood deck. It’s simple, clean, and good for water runoff. A concrete slab works too. Foundation guidelines come with the kit.
How long does it take to put up?
As a rough average, the Tetra Hybrid shell goes up in about 2–3 days. It depends most on the dome size, plus your crew’s experience and the rental equipment used for the install. That doesn’t include the foundation or deck, electrical, plumbing or interior finishing. Every kit comes with an installation manual and assembly blueprints, plus support from our team.
How long does it take to receive my dome?
Made to order. Currently ships in 10–12 weeks. Lead times vary with order volume and season. Your production schedule is confirmed with your quote.
How is the Tetra Hybrid shipped?
Free shipping to the lower 48 states. The kit ships flat-packed, palleted, shrink-wrapped, and insured in a covered box truck, with the frame, glass, cover, insulation, and fasteners, plus an installation manual and assembly blueprints. Alaska, Hawaii, and international delivery are quoted separately.
How much does the Tetra Hybrid dome kit cost?
The price depends on your size, cover color, glass finish, and upgrades. Request a quote or book a call with our team and we’ll price your exact size and options, and show you how the Tetra Hybrid compares with the Tetra Glass.
Still have questions? Book a call with our team →
Book a call
Book a call with our team
Choose a day and time that works for you. We’ll connect over a quick video call to discuss your goals and how we can help.
- Dome kits sized, specced, and priced for your site
- Straight answers on pricing, permits, and timelines
Prefer the phone? (866) 767-3117
Start your project
Get a Tetra Hybrid Quote
Tell us where you’re building, what size you have in mind, and how you’ll use the dome. We’ll follow up with a no-pressure consultation and a quote, including a skylight or larger glass area if you want one.
Prefer to talk it through?
A free 30-minute video call with Erick, our cofounder. Or call (866) 767-3117.
